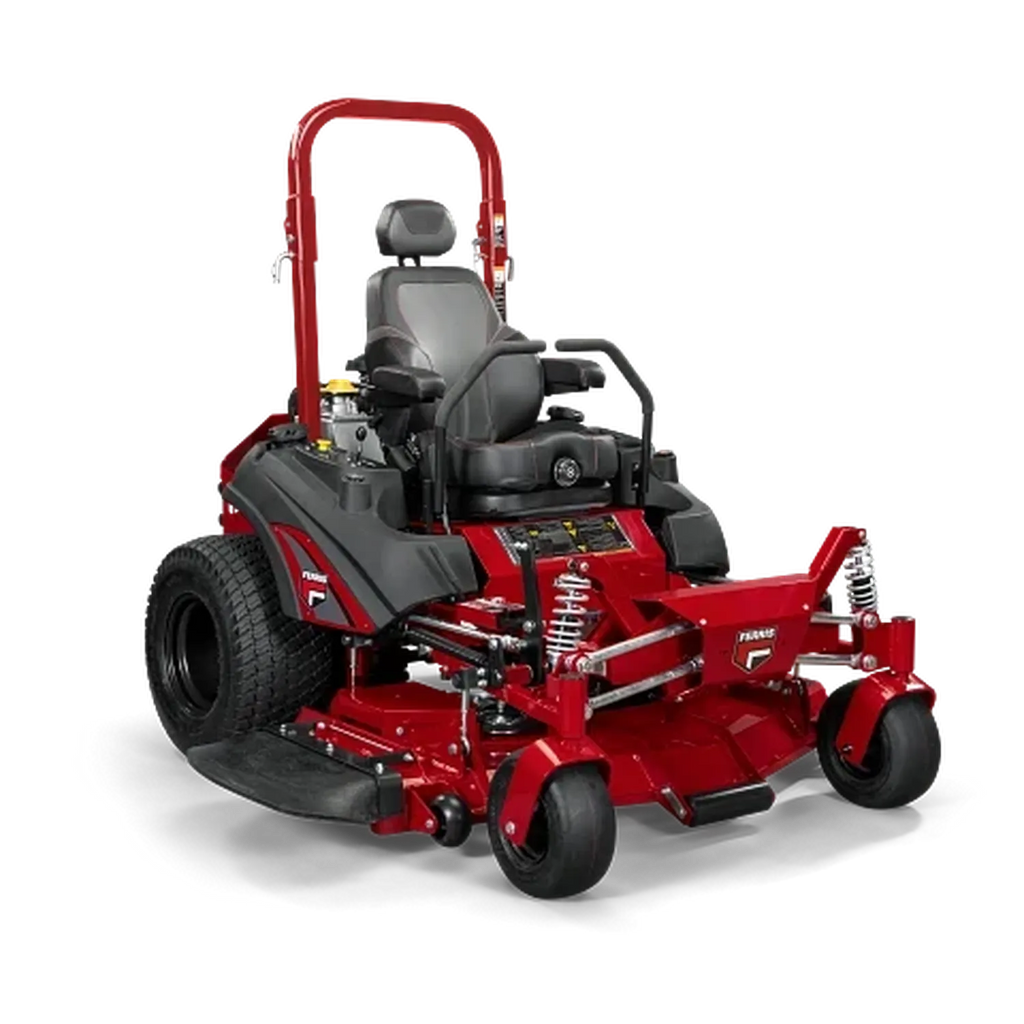

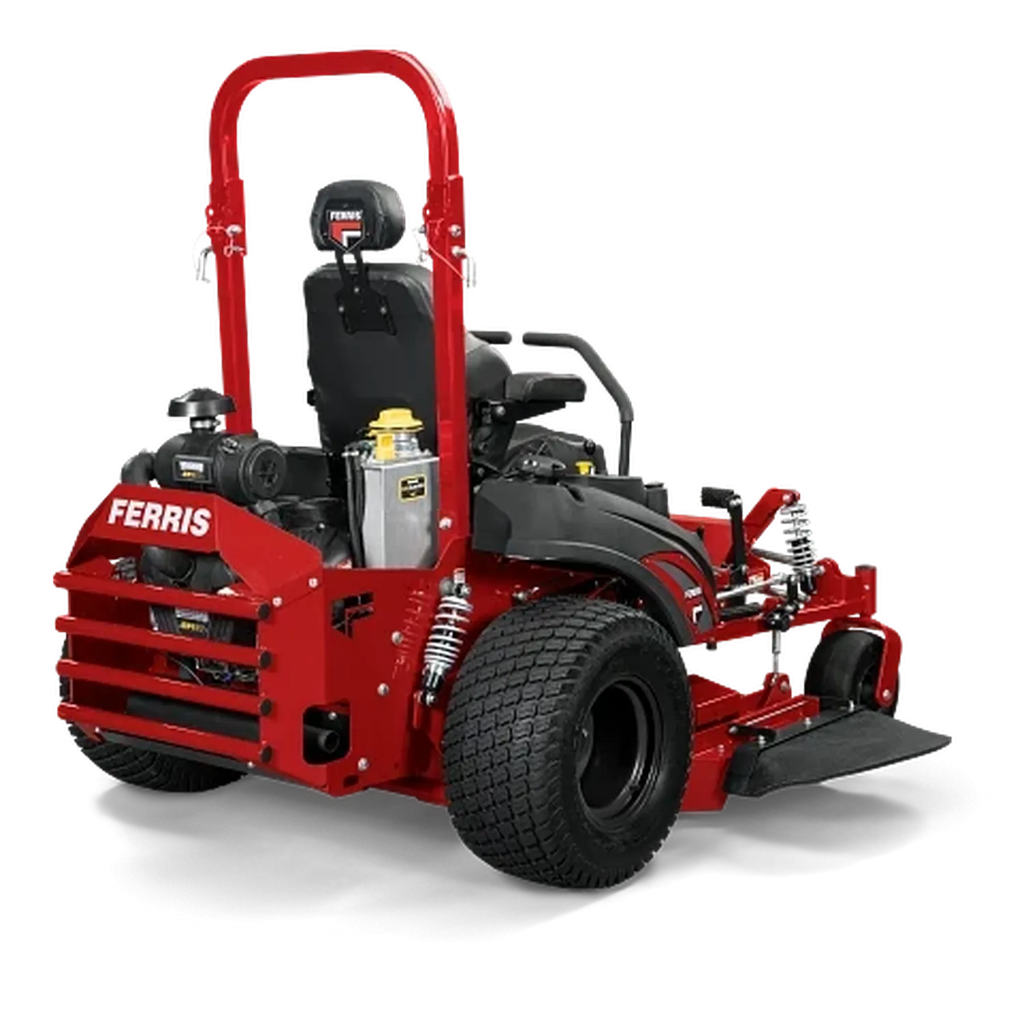

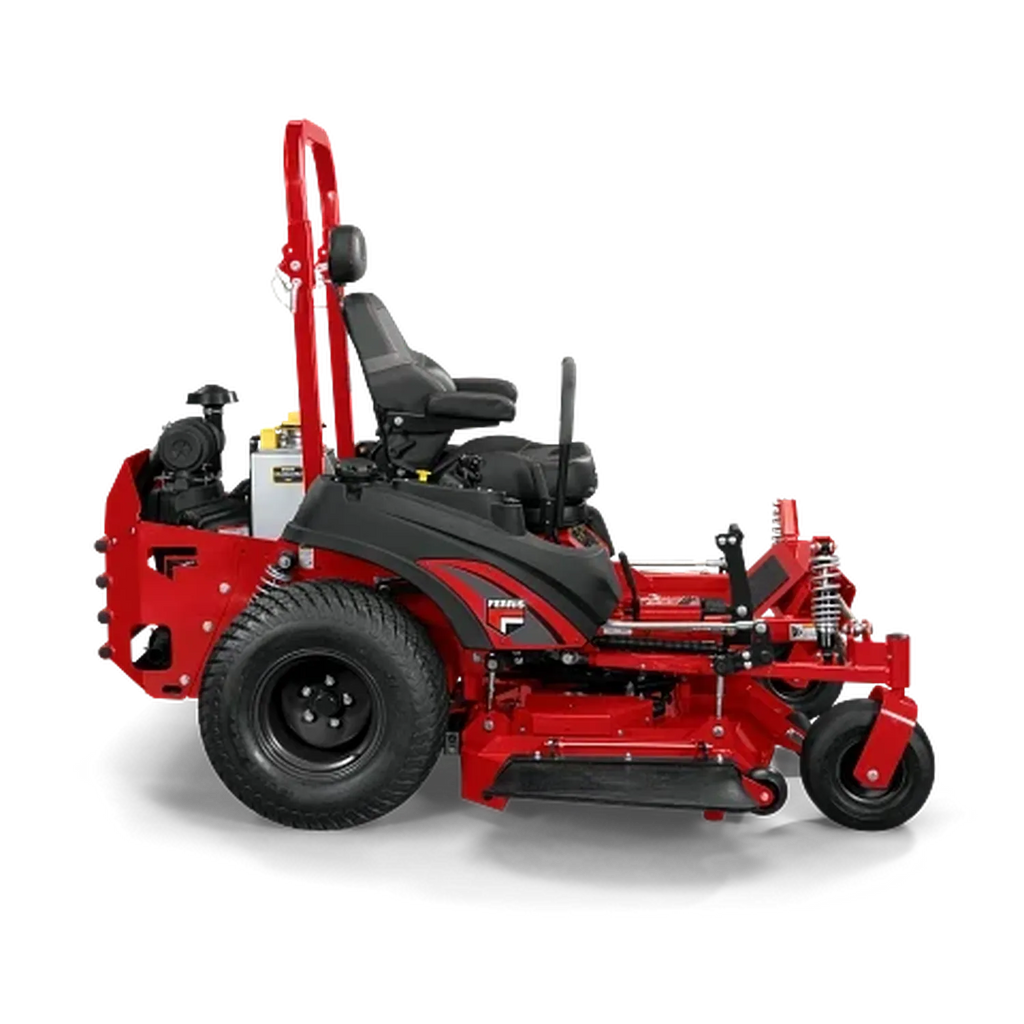

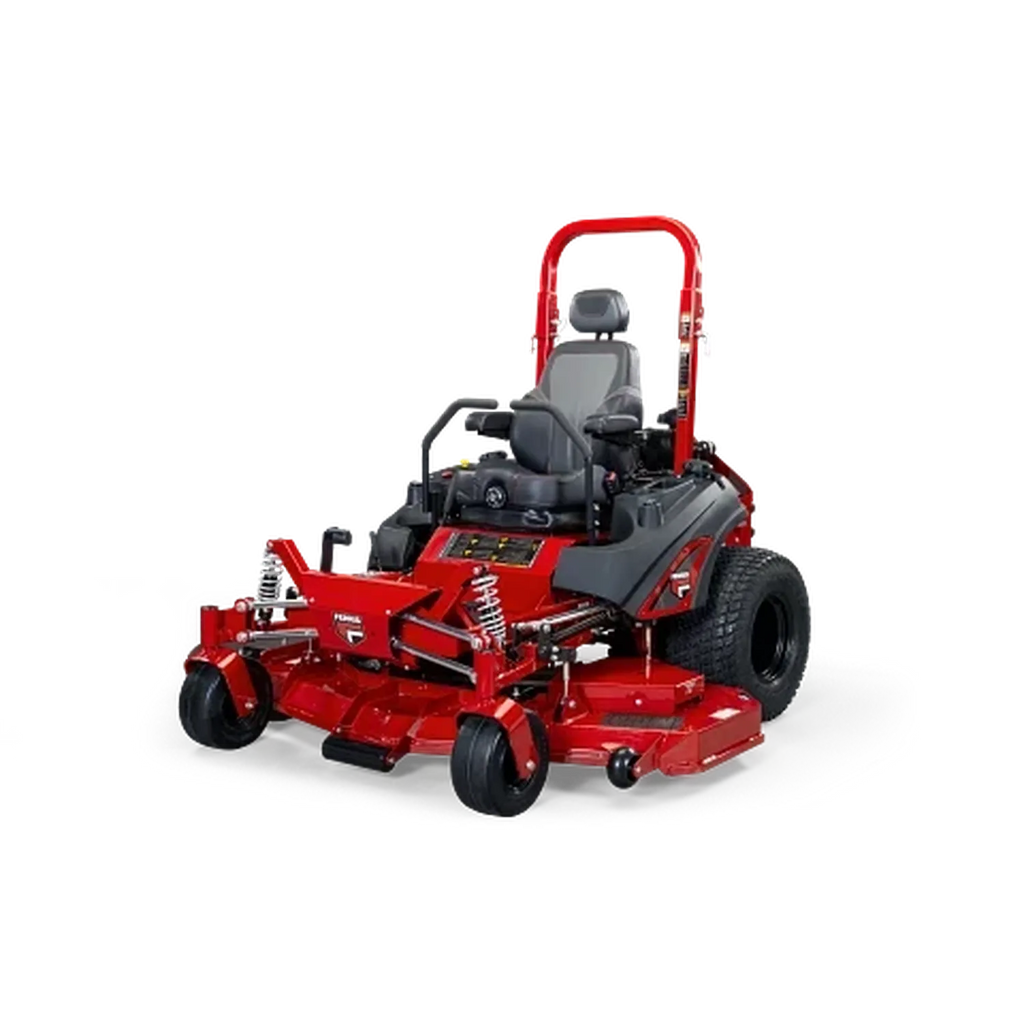

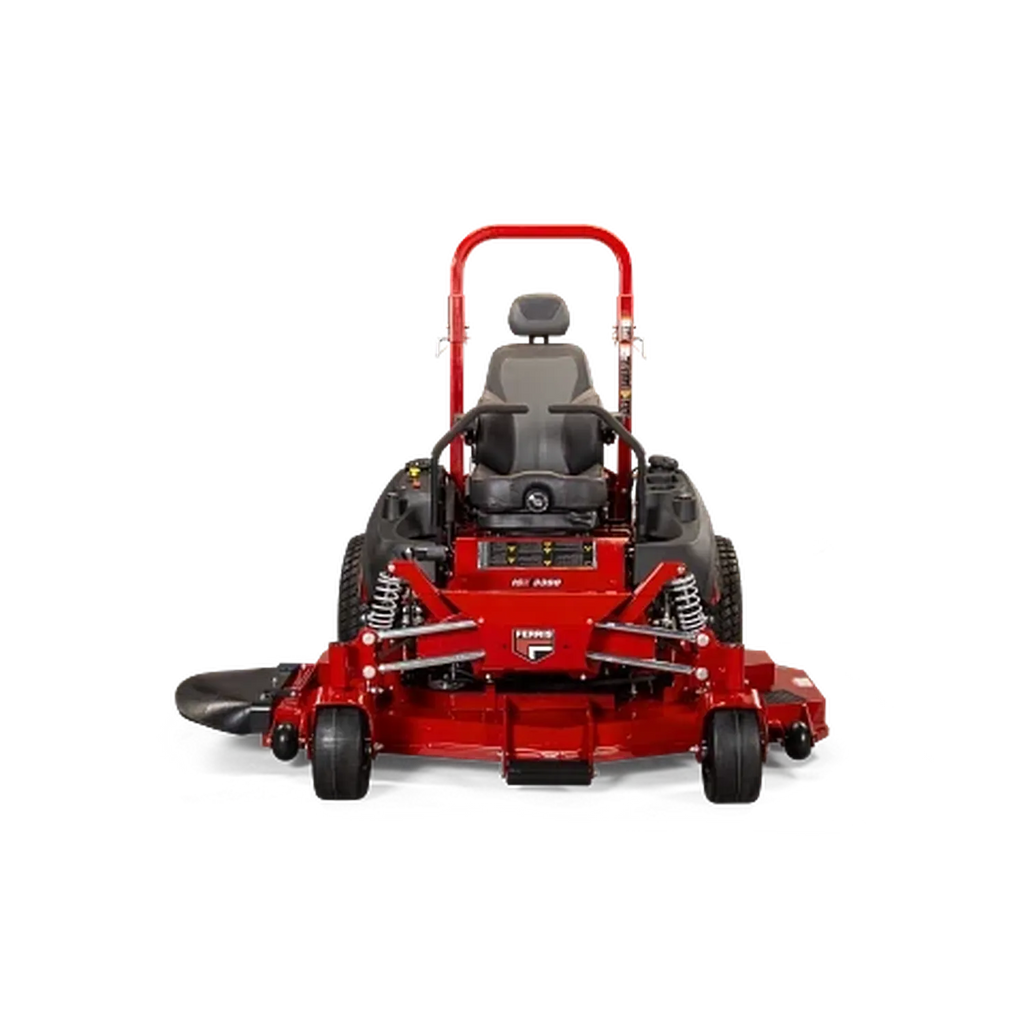

ISX 3300

Name: ISX 3300
Brand: My Store
Price: 8414.55 USD
Availability: InStock

Deck Options: 60" Cutting Width

Engine Options: 38.5 HP Kawasaki® FX1000V EFI

Variant

Price:

$8,414.55

Quantity:

Share this product

THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF

Featuring next-generation suspension technology – ForeFront™ Suspension, a redesigned 2-belt iCD™+ cutting system, heavy-duty dual commercial Hydro-Gear^® ZT-5400 drive system, and travel speeds up to 12 mph. Plus, select models feature EFI-ETC technology for fuel savings, easy starting, and smooth, consistent productivity.

Features

NEW! iCD™+ Cutting System

Redesigned to deliver next-level performance, increased durability and superior results. Select models.

NEW! USB Port

12V-60V, USB Type A & C located on the dash panel for easy access and charging.

ForeFront™ Suspension System

The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Vanguard BIG BLOCK™ Engine

The EFI-ETC engine with Oil Guard delivers a 500 hour oil change interval and 28 hp*, giving you added cutting performance to excel in thick, dense, and wet conditions. (select models)

Drive System

Dual, commercial Hydro-Gear^® ZT-5400 Powertrain^® transaxles with 9" cooling fans

Hercules™ II Cast-Iron

Hercules™ II Cast-Iron; 10" dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16" dia. shaft. Contact ball bearings with 1 3/16" dia. shaft.

Vanguard Electronic Throttle Control

This new technology allows the engine to harness all the power that is generated for more consistent blade tip speed. (select models)

Specifications

PTO

Electric

Cylinders

Starter

Electric

Fuel Type

Gasoline

Fuel Tank Capacity (gal)

Hour Meter/Instrumentation

Dual-function hour meter, fuel level gauge in each tank

Deck Size (in)

Cutting Height (in)

1.5 - 5

Spindles

Hercules™ II cast-iron

Deck Construction

iCD™+ Cutting System, 2-belt

Suspension

ForeFront™ Suspension System

Transmission

Dual-commercial Hydro-Gear^® ZT-5400 Powertrain^® transaxles with 9" cooling fans

Drive Axles (in)

1.375

Caster Tires (in)

13 x 6.5-6 (Kawasaki)

13 x 6.5-6 flat-free (Vanguard)

Drive Tires (in)

26 x 12-12

Ground Speed-Fwd (mph)

0-12

Ground Speed-Rev (mph)

0-5

Overall Length (in)

84.5

Overall Width (in) Deflector Down/Deflector Up

74/65 (60")

86/74 (72")

Dry Weight (lbs)

1496 (60" Kawasaki)

1579 (72" Kawasaki)

1634 (60" Vanguard)

1717 (72" Vanguard)

Seat Package

Premium high-back suspension seat with adjustable arm rests, adjustable lumbar and back recline

Certified Roll-over Protection System

158° foldable

Controls / Safety Group

Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls

Parking Brake / Safety Circuit

Hand operated internal transaxle brake

Warranty

Warranty (Engine) †

3-Year limited manufacturer's warranty

Warranty (Balance of Machine) †

4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
