Description
Multi-purpose Compact Tractor

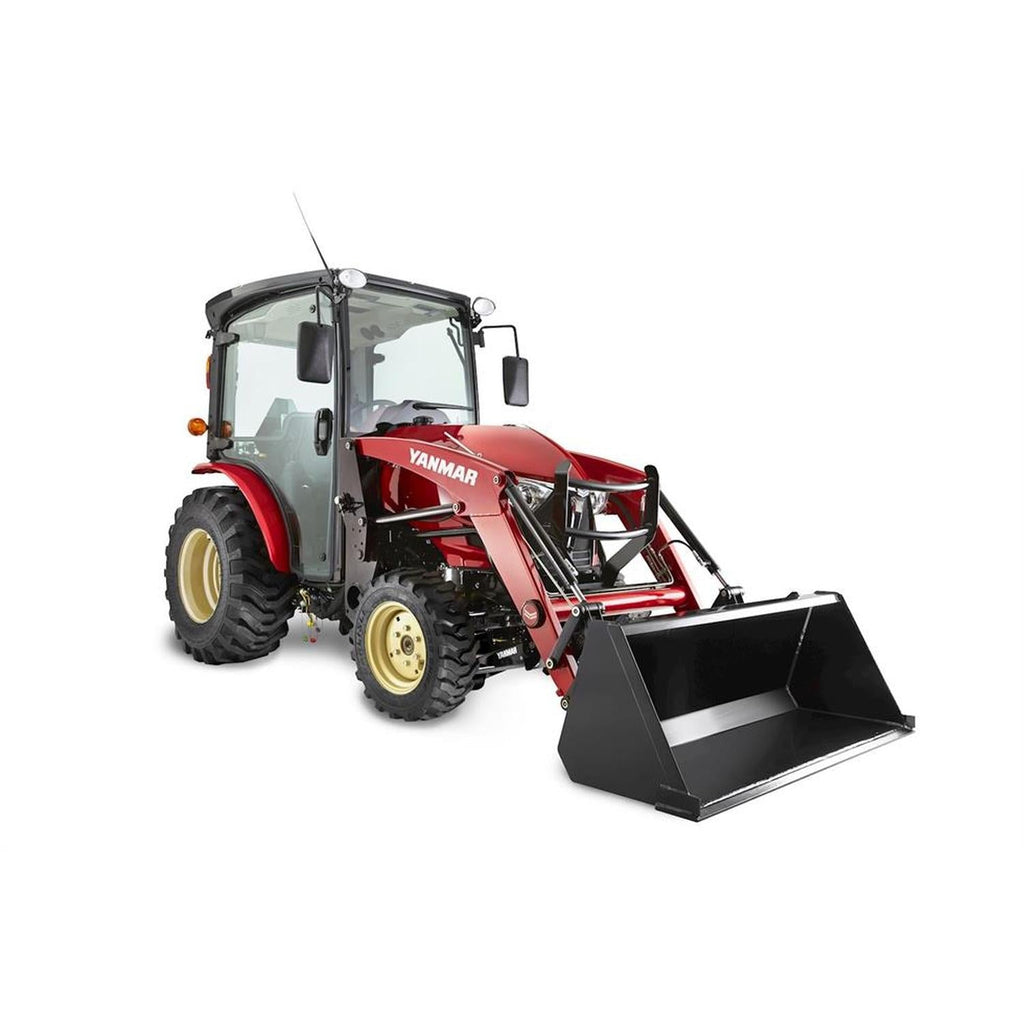

The YT235C has you covered with its enclosed cab, so you can keep working regardless of the weather. The YT235C is equipped with a hydrostatic transmission that gives you a virtually infinite selection from the tractor’s lowest creeper speed to its maximum transport speed. Quickly find the ideal speed for the easiest to the most demanding jobs.
*Price listed includes Cash Rebate - Low Rate Financing Available
Comfort + Control + Innovation.
As with every YANMAR tractor, the true power lies in the fuel-efficient YANMAR diesel engine. That means the YT235 can do serious work with a front-end loader, a hydraulic backhoe, and three-point hitch attachments for mowing, tilling, planting, digging, plowing, and much more.
The advanced styling of the YANMAR YT2 Series tractors is only the beginning. The YT235 is built to help you be more efficient and productive. Every day. From easy-to-use controls to the advanced engineering under the hood, the innovation of the YT235 goes much deeper than stunning aesthetics.
Features
- YL310 Front Loader w/ 60" Quick Attach Bucket & Grill Guard (1,300 Lb. Capacity)
- Performance Link Technology™
- Premium Cab w/ Heat & Air Conditioning
- Cast Iron Transmission & Front Axle
- One Piece Steel Hood
- Advanced Controls to Ease Operator Workload & Increase Comfort
- Dual Hydraulic Pumps
- Hydraulic Power Steering
- True 3-point Hitch Position Control
- Electro Hydro Independent PTO with One-Touch On/Off
- Premium High Back Seat w/ Armrests
- 10 Year/3,000 Hr. Limited Powertrain Warranty
Third function valve control available and integrated into joystick.
One-piece easy open steel hood.
Skid steer style bucket attachment.
Specifications
| Model | YT235C | |||
|---|---|---|---|---|
| Gross Power: EPA Regulation HP (kW) | 34.2 HP(26.1 kW)* | |||
| Overall length (with 3PH and R4 Tires) | 116.9” (2,970 mm) | |||
| Overall Width (with R4 Tires) | 58.3” (1,482 mm) | |||
| Overall Height (with Roll-Over Protection, and R4 tires) | 83.6” (2,123 mm) | |||
| Transmission | Hydrostatic (Dual Touch Pedal) | |||
| Drive Type | 2WD/4WD selectable engagement | |||
| Lift Capacity (Pivot Pin) lb. (kg) | 1,300 lb. (590 kg) | |||
| Bucket Width in. (mm) | 60” (1,524 mm) | |||
| PTO Power HP (kW) | 27 HP (20.1 kW) | |||
| Rear PTO Speed/Engine RPM | 540 | |||
| Mid PTO Speed/Engine RPM | 2,013 | |||
| Wheel Base | 65” (1,650 mm) | |||
| Front Tires (with R4) | 13.6” x 16” | |||
| Rear Tires (with R4) | 15” - 19.6” | |||
| 3-Point Hitch | Category 1 |
