Description
The YT359's exclusive i-HMT design efficiently converts horsepower from a 4-cylinder diesel engine into the energy you need to run a wide range of attachments for mowing, plowing, digging, lifting and hauling. YANMAR’s transmission lets you choose the right speed for every task and application.
Features

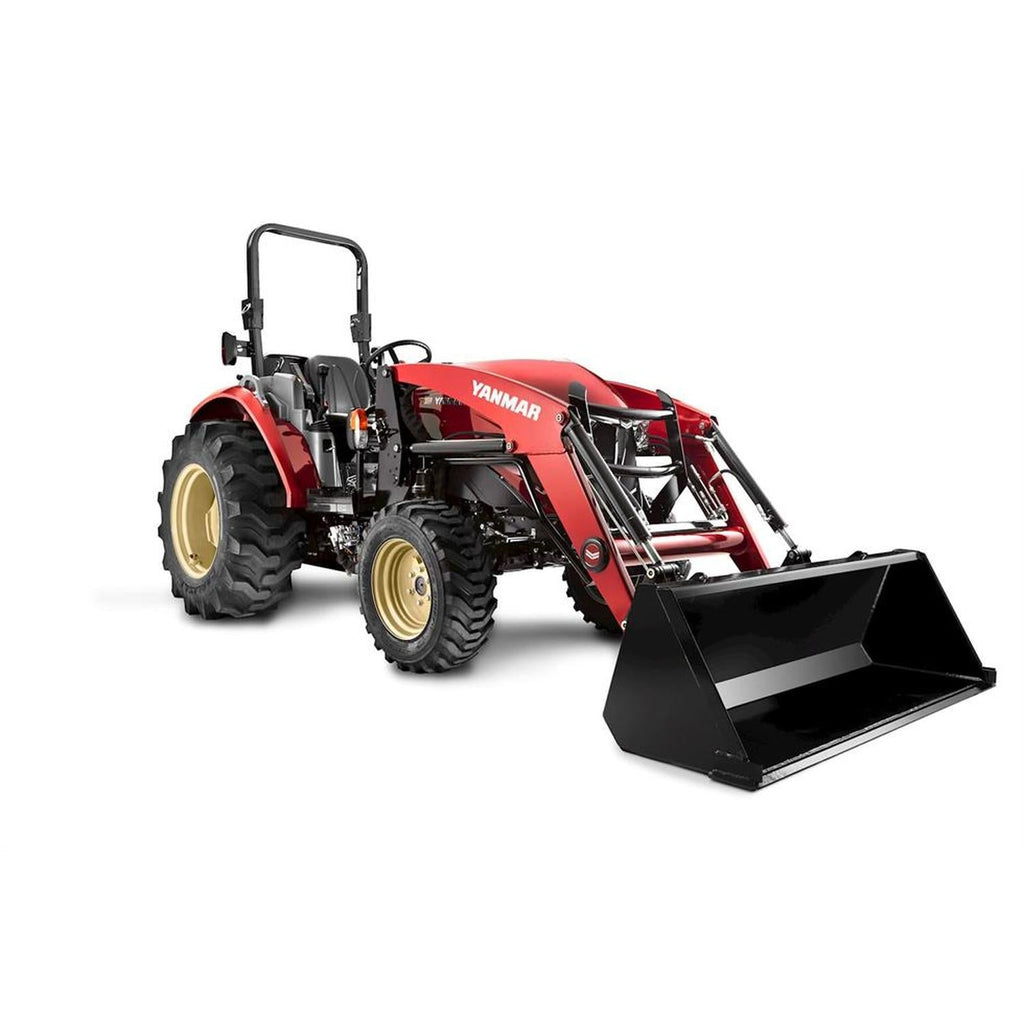

When you need a tractor for bigger and tougher jobs, look no further than the Yanmar YT359. Comfortable and easy to operate, the YT359 uses advanced electronic controls and an integrated hydraulic mechanical transmission (i-HMT). No longer do you have to choose between an efficient, constant speed and flexible operation. The i-HMT creates the standard for performance versatility.
I-HMT Transmission
No other compact tractor can boast the integrated hydraulic mechanical transmission (i-HMT) technology of the YANMAR YT347. The i-HMT creates the standard of operation for more versatile performance. No longer do you have to choose between an efficient, constant speed and flexible operation. With the YT347 and its innovative technology, you get both.
- High power transfer ratio
- Repeatable operating speed
- Low fuel consumption due to increased transmission efficiency
- Step-less main shift
- Best speed possible for implement
- Clutch-less shifting
- Vehicle stop without clutch
Advanced Electronic Controls
Our YT3 Series tractors are designed to make work easier for people of all skill levels. The YT359 includes an auto-throttle that enables you to control engine and travel speed with the accelerator/drive pedal. This makes operating the tractor like driving a car or truck with an automatic transmission car. A/B Mode lets you preset your maximum travel speed. An anti-stall feature keeps your engine running when you dig or lift a heavy load. There’s also cruise control to keep you moving efficiently when mowing or traveling for long stretches. YANMAR designs and builds the major components, engine, front axle, transmission, and final drive, to work together.
- Ergonomic Operators Station
- Controls on joystick
- Large LCD display integrates with controls
- Anti-stall
- Electronic cruise control
- Rear remote
- Loader control valve & joystick
- 12V outlet
- Advanced electronic controls
- Auto-throttle
- A/B Mode
- Throttle boost button
- i-HMT Transmission
- Loader 3rd function valve optional
Specifications
| Gross Power: EPA Regulation HP (kW) | 58.9 HP (43.9 kW)* | |||
| Overall length (with 3PH and R4 Tires) | 132.1” (3,355 mm) | |||
| Overall Width (with R4 Tires) | 70.6” (1,793 mm) | |||
| Overall Height (with Roll-Over Protection, and R4 tires) | 95.7” (2,431 mm) | |||
| Transmission | I-HMT(Integrated Hydro Mechanical Transmission) | |||
| Drive Type | 2WD/4WD selectable engagement | |||
| Lift Capacity (Pivot Pin) lb. (kg) | 2,500 lbs. (1,134 kg) | |||
| Bucket Width in. (mm) | 72” (1,829 mm) | |||
| PTO Power HP (kW) | 52.0 HP (38.3kW) | |||
| Rear PTO Speed/Engine RPM | 540 RPM | |||
| Mid PTO Speed/Engine RPM | N/A | |||
| Wheel Base | 77.4” (1,967 mm) | |||
| Front Tires (with R4) | 10” - 16.5” | |||
| Rear Tires (with R4) | 17.5” L - 24” | |||
| 3-Point Hitch | Category 1 |
Warranty
All Yanmar tractors come with 10-Year Limited Powertrain Warranty or 3,000 hours (whichever comes first)
Yanmar designs and manufactures all major powertrain components – engine, front axle, transmission, and final drive – and are built to Yanmar’s highest quality standards and specifications.
Anyone can say they provide a high-quality tractor, but it’s a statement that Yanmar is standing behind the tractors they build to give customers peace of mind and the confidence that Yanmar tractors will get the job done. This is why Yanmar is able to confidently offer unmatched, industry-leading warranty in the market today.
Yanmar has a long history of designing and building premium tractors that are known for their durability. Yanmar tractors are as solid as ever, which is why Yanmar is able to confidently step forward and provide the industry-leading warranty in the market. In addition to the industry-leading warranty, Yanmar’s customers can experience unparalleled customer support every day through an extensive and passionate dealer network.
Product Quality
Rated #1 in Product Quality 7 years in a row in EDA survey
Yanmar is proud to announce that Yanmar tractors were rated #1 in Product Quality among tractor manufacturers for the last 7 years in a row in 2018, 2019, 2020, 2021, 2022, 2023 & 2024. This is based on a survey conducted by Equipment Dealers Association (EDA) in its annual dealer-manufacturer relations survey.
EDA defines tractor manufacturers as equipment manufacturers who produce, distribute and market tractors of varying horsepower used primarily in farm and ranch, construction, landscaping, municipal, and landowner operations.
Copyright © 2023 Equipment Dealers Association
Performance Link Technology
Unearth reliability and consistent output for a tractor that works as hard as you do.
By controlling production of all major drivetrain components in-house, Yanmar’s engine, transmission, front axle, and final drive components work together perfectly by design. We’ve dubbed it Performance Link Technology™. Unlike our competitors, who source these integral parts from various manufacturers, our compact and sub-compact tractors offer unmatched quality, improved efficiency, and smoother operation.
Unmatched Quality
Backed by an industry-leading 10-year limited powertrain warranty, we stand behind our tractors and components to give you peace of mind.
Improved Efficiency
When it comes to hard work and increased load handling, Performance Link Technology bolsters performance with more usable horsepower.
Smoother Operation
Get more work done quickly (and quieter) thanks to our seamlessly integrated components and optional attachments.
Love your land and love the reliability you get with Yanmar’s Performance Link Technology. When you choose power and performance by design, your to-do list is only the beginning.
Yanmar Engines
At Yanmar, we know a lot about a lot, but we know the most about engines.
We take great pride in producing reliable and efficient engines that get the job done every time, without hiccups. Our engines are true high-performance technology and boast the maximum in engine life – and these words are far from empty. Our engines are tested under extreme conditions. They don’t leave our production line until we are sure that they will live up to every aspect of Yanmar’s legendary reputation. Our commitment is reflected in our impressive engine warranties and world-class dealer support network.
Since 1933 we have manufactured, with precise craftmanship, over 15 million diesel and gas engines ranging from 4.5 to 5,000 horsepower. Our engines can be found across a multitude of landscapes and industries – from agriculture to industrial, to marine leisure, and everything in between.
We see each of our engines as a promise: a promise made from us to our dealers, and our end users. We promise to build & deliver engines that are scrutinized, perfected and found to be of outstanding quality. In short, we promise to be Yanmar, and our track record proves that we aren’t in the business of breaking our promises.
Yanmar is engaged in the relentless pursuit of high efficiency, low emission, diesel engines. With technology that already meets the next generation of environmental emissions standards, Yanmar is providing sustainable solutions towards a new era of prosperity.
Yanmar continues its reputation for superior starting characteristics by refining the combustion process to assure more precise fuel delivery and control. The result is reduced emissions, improved performance over a wide range of applications, and increased fuel economy.
The Yanmar line of Final Tier 4 engines continues to build upon the legendary reliability of the Yanmar TNV line with a focus on vibration reduction and high-strength materials. The result is an engine more than capable of handling the most demanding applications.
