Description
Take your business to the next level.

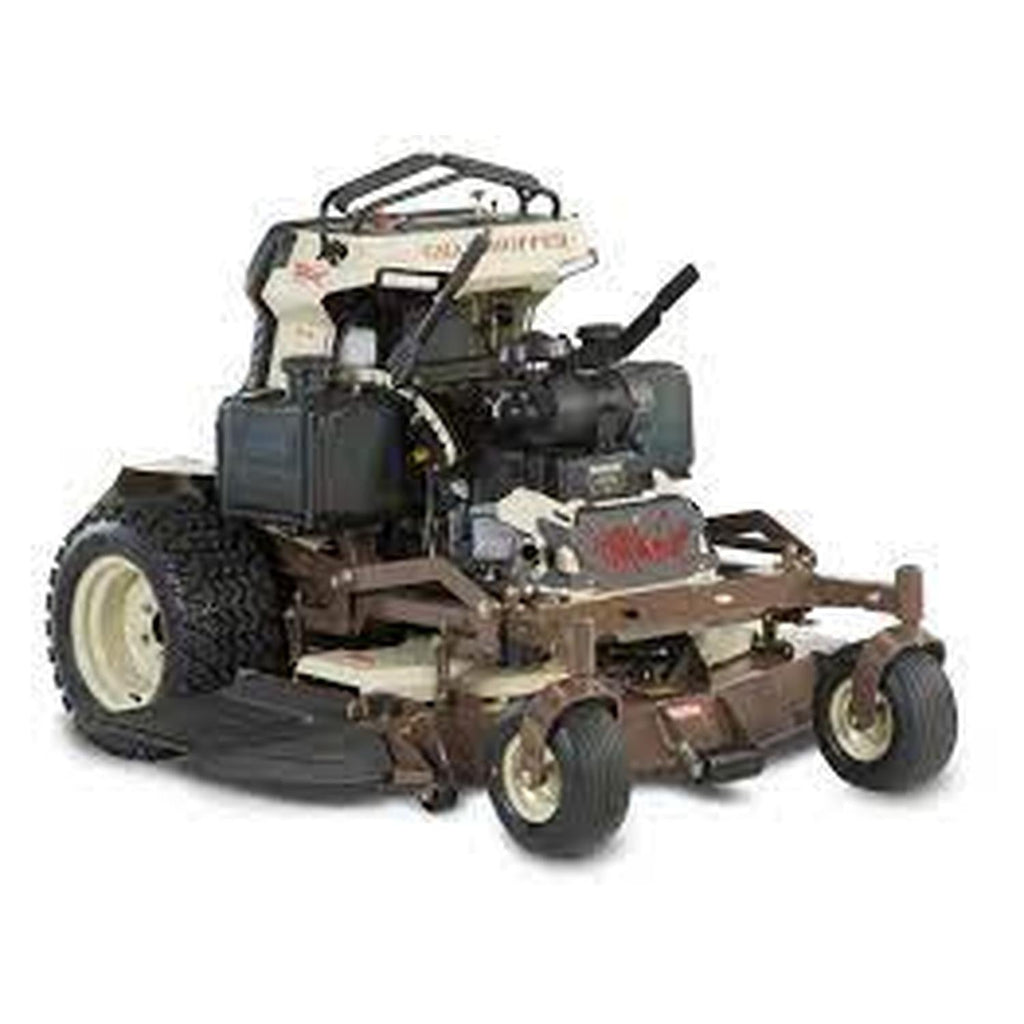

The Stand-On Series is designed for extreme operator proficiency and all-day ergonomic comfort. True ZeroTurn™ maneuverability, outstanding ease-of-use, effortless on/off and legendary Grasshopper cut quality combine to deliver superior performance.
B&S Vanguard Engine
- 810 cc (49.4 cu. in.) Vanguard, V-Twin, OHV engine
- Heavy-duty components enhance power and reliability
- Remote-mounted, centrifugal multi-stage air cleaner with advanced debris managements
- Extended maintenance intervals
- Three-year limited commercial engine manufacturer warranty (see dealer for details)
Exclusive T-Drive™ Transmission
- Tandem 12cc Parker pumps-in-reservoir transmission is specifically designed for turf-care applications
- In-line CoolFan™ cooling system and integrated, replaceable, high-efficiency fine-particle filter
- Design directs more power to the cutting deck as power-sapping components are eliminated
Heavy-Duty Deck
- Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
- Specially designed cutting chambers enhance airflow for better cut quality
- Deck easily converts from side discharge to optional Down Discharge™ mulching
- Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
- Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
- Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion
Command Center Tower
Provides 4.5 inches of adjustable range and is positioned to provide a panoramic view of the mowing environment and easy reach of all switches, levers and controls, including a deep phone/accessory tray with USB charging ports.
Features an extra-wide, extra-thick pad with embroidered Grasshopper logo.
LED Work Lights
LED work lights provide improved visibility in low light situations.
Hydraulically Dampened Control Levers
Hydraulically dampened control levers that also provide responsive and effortless maneuvering–including one-hand operation–and return to neutral when released from forward and reverse. Adjustable grip bar accommodates larger and smaller reaches of different operators.
Wide Anti-Slip Platform
Equipped with coil-spring suspension and dampeners, insulating the operator from vibrations, for a smooth, shock-reducing, floating-action ride and minimal bouncing.
Low Center of Gravity
Every Grasshopper mower is designed with a low center of gravity for optimal traction and stability. The centralized location of the engine, T-Drive™ pump and dual fuel tanks on Stand-On models lowers the overall center of gravity, and a total fuel capacity of 9.25 gal/35.0 L reduces the need for frequent refueling.
EZ Deck lift lever
Cutting height is effortlessly raised and lowered thanks to the smooth motion of the hand-operated lever.
USB Ports
Two USB Charging Ports
Compact Wheelbase
The compact wheelbase provides an incredible power-to-size ratio.
Easily fit more units on trailers and maneuver through tighter spaces.
Minimal Maintenance
- Five grease points and easy top-side access to belts and filters
- 500-hour transmission fluid change intervals
- Self-tensioning belts minimize cost and labor on routine maintenance
Rugged Construction
- Robotically-welded steel construction for long-lasting durability
- Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
- Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
Specifications
ENGINE
DURAMAX® DECKS
STARTER & ELECTRICAL SYSTEM
ULTIMATE OPERATOR STATION
TRANSMISSION & STEERING
TIRE SIZES
DIMENSIONS
WEIGHT
Warranty
2-year unlimited hours; limited warranty covering parts and labor.
Options & Accessories
SpeedTrimming™ Roller Kit
The optional SpeedTrimming™ heavy-duty, anti-scalp roller kit for 61" and 72" DuraMax® decks (52" and 61" for Stand On decks) speeds close trimming near buildings, fences retaining walls and other landscaping features. Kits available for both left and right sides of cutting decks.
Down Discharge™ Mulching Package
The optional Down Discharge™ mulching package with GrassMax™ medium-lift blades cuts and recuts clippings and directs them deep into the grass bed, enriching turf and producing a beautifully manicured cut.
DuraFlex™ Suspension Forks
Optional DuraFlex™ Suspension Forks absorb the impacts of rough terrain to maintain a level cut, and can be set for use with PowerVac™ collectors.
Air Dam Kit
An optional Air Dam Kit can be installed along the front edge of most mower decks to minimize dust and dirt escaping from the front of the mower.
Side Discharge Control Kit
Control the discharge of the mower deck to avoid putting clippings in flower beds and on sidewalks
Filter Minder
The Filter Minder alerts the operator when airflow is restricted in the air canister on dual-element air filters. The Filter Minder is available as an option on all 616T and 700 Series FrontMount™ models (except 721DT, 725K and 727EFI) with heavy duty canister-type air cleaners.
Michelin® X® Tweel® Airless Front Caster Tire
Smooth tread, 13x6.50x6 caster wheel. Performs like a pneumatic tire, but without the inconvenience and downtime associated with flats. Not for use with PowerVac Collection Systems, or with DuraFlex Suspension Forks.
