Description

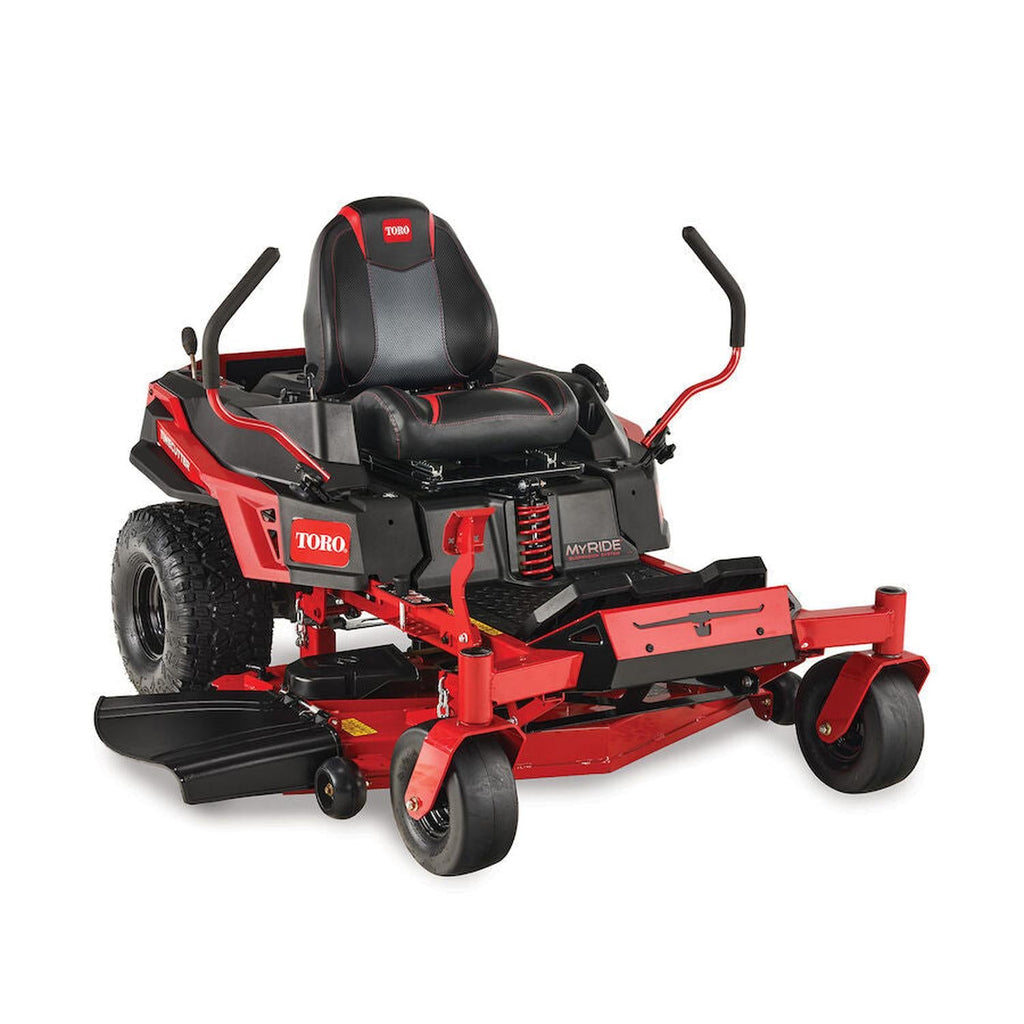

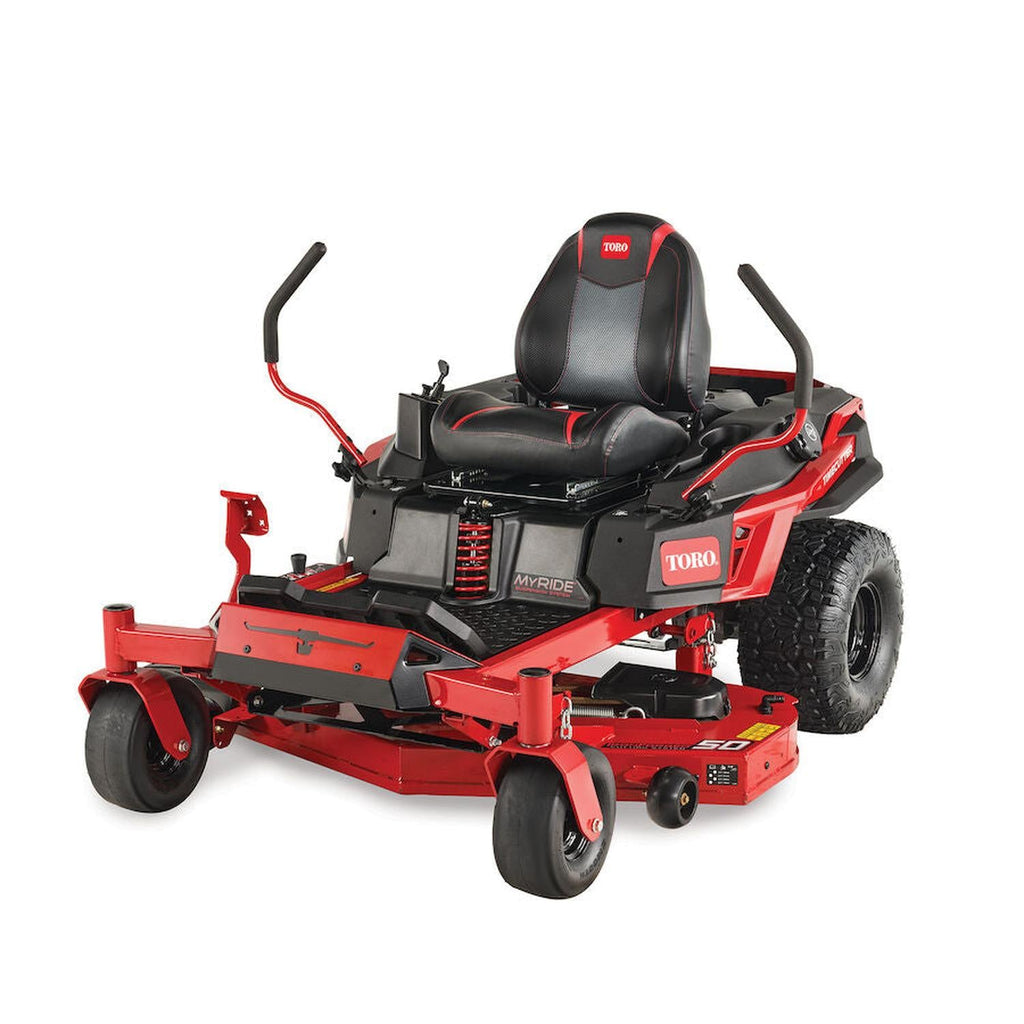

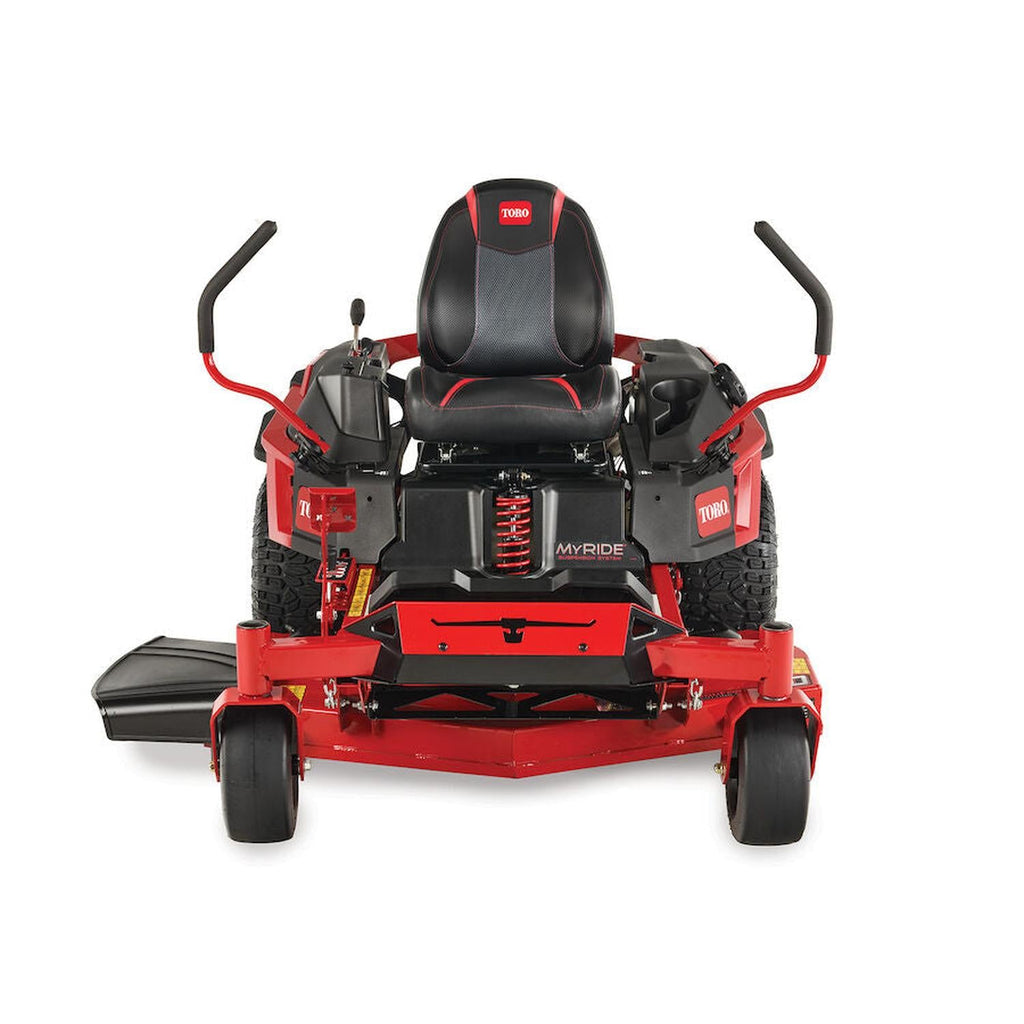

50" TimeCutter® Max MyRide® Zero Turn Mower
SET UP AND PREP FEES MAY APPLY
STORE PICKUP OR LOCAL DELIVERY ONLY
When it comes to your yard, second best just won't cut it. That's why the Toro TimeCutter MAX is designed to take down grass like a pro and leave you feeling like a million bucks when you're done. With features like an unflinching heavy duty IronForged deck and fully floating MyRIDE® Suspension, you get the toughness and precision that comes with over a century of pro-level engineering and a shockingly smooth, back-saving ride and save a ridiculous amount of time cutting.
Parts Manual
Specifications
| Air Filter | Standard Kawasaki Air Cleaner |
|---|---|
| Anti Scalp Wheels | 3 Standard |
| Armrests | Optional |
| Blade Tip Speed | 17,600 ft/min / 5,364 m/min |
| Carrier Frame | 3 in. x 1.5 in. x 0.120 in. Wall Tubular Steel |
| Caster Tires | 12 in. x 6 in. - 5 in. Pneumatic |
| Clutch | Electromagnetic |
| Comfort Platform | MyRIDE® Suspension System |
| Cooling System | Air Cooled |
| Cup Holder | Standard |
| Cutter System | Steel Cutting Blade |
| Deck Design | 10-Gauge steel IrongForged® |
| Deck Material | 10 Gauge Steel |
| Deck Size | 50" |
| Discharge Chute | Side |
| Drive System | HYDRO |
| Drive Tires | 20 in. x 10 in. - 8 in |
| Drive Type | Rear-Wheel Drive |
| Engine | 23 hp Kawasaki FR691V 726cc |
| Engine Brand | Kawasaki |
| Engine Displacement (cc) | 726 cc |
| Engine Horsepower | 23.0 hp |
| Foot Operated Height of Cut | Standard |
| Forward Ground/Transport Speed | Up to 7.0 mph / 11.2 kph |
| Forward Mowing Speed | Up to 7.0 mph / 11.2 kph |
| Frame | 3 in. x 1.5 in. Steel Tubing |
| Fuel Capacity | 5 gal. / 18.9 L / 20 Qt. |
| Greasable Bearings | Yes |
| Height of Cut | 1.5 - 5.0 in. / 3.8 - 12.7 cm |
| Hitch Bracket | Standard |
| Hour Meter | Optional |
| Hydraulic Drive | Standard |
| Lighting | Optional |
| Number of Blades | 3 |
| Product Type | TimeCutter Max MyRide |
| Product Use | Residential |
| Recommended Oil Type | 10W-30 |
| Seat | 19" Gaming Style |
| Spindle Bearings | Maintenance-free |
| Spindle Housing | Cast-Aluminum |
| Steering Controls | Twin Lever |
| Steering Dampeners | Standard Dampers |
| Terrain Type | Flat with Obstacles |
| Tires | 12 in. x 6 in. Front, 20 in. x11 in. Rear |
| Tow Capacity | Combined machine, user, towed weight may not exceed 1,000 lbs. |
| Transmission | Dual Hydrostatic HG-EZT2200 |
| Washout Port | Standard |
| Weight | 684 lbs |
Features Game Changer. Back Saver.MyRIDE® Suspension System. Sitting isolated from the mower frame, it'll save your back and accelerate your mow.
 Better Fill. Fewer Spills.Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
 Pro DNACommercial DNA courses through these machines' veins with the same technology professionals depend on. Get a beautiful, professional-looking lawn.
 Shut Down Sprayback.There's nothing good about getting blasted with filthy backsplash. That's why spray blocking fenders come standard—to keep tire spray off your engine, and more importantly, you.
|
 Sturdy Step-On.The four-point deck hanging system doesn't flinch under your feet when you get on or off the mower.
 Traction for Any Terrain.Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
 Turf Tough. Bull Strong.Its heavy duty steel IronForged® Deck doesn't flinch no matter what you throw its way. With bulletproof material-reinforced belts, a beefy leading edge and huge spindles, this beast is built to last.
|
