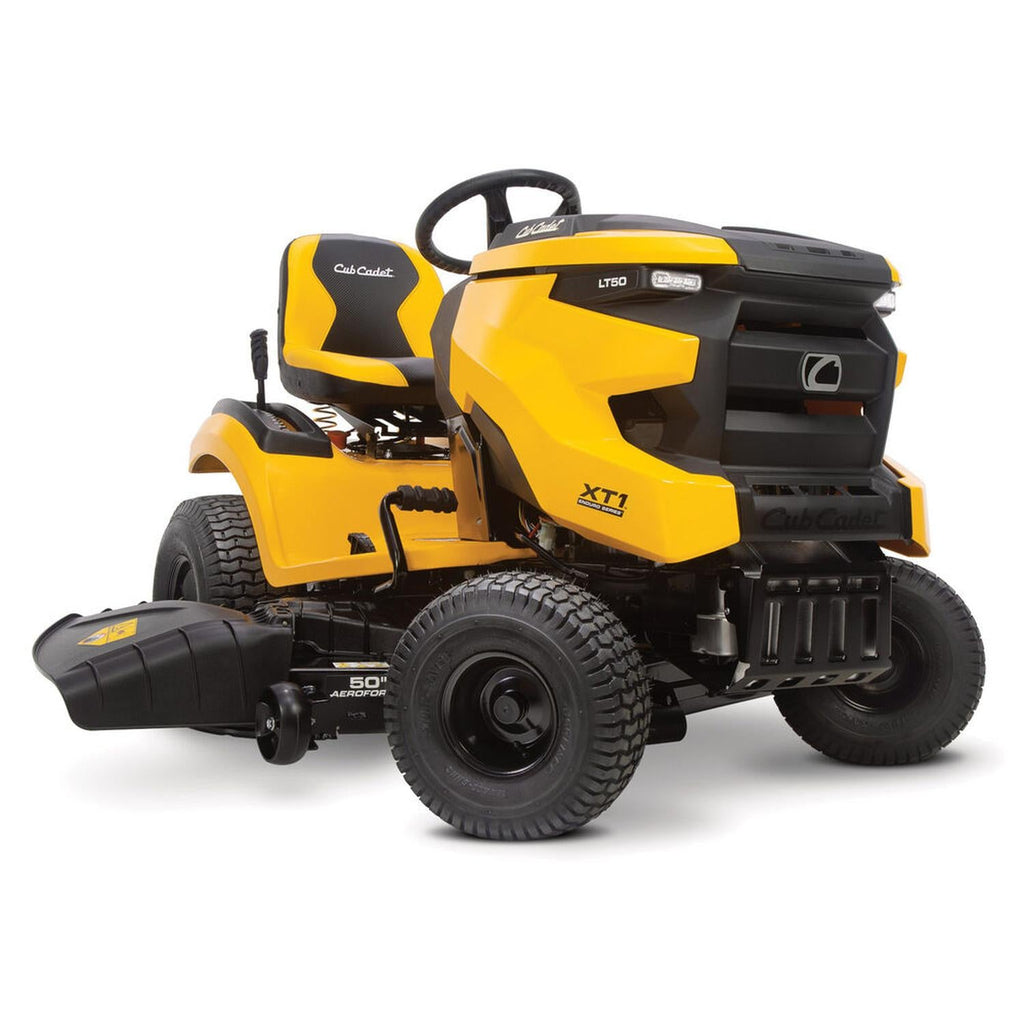

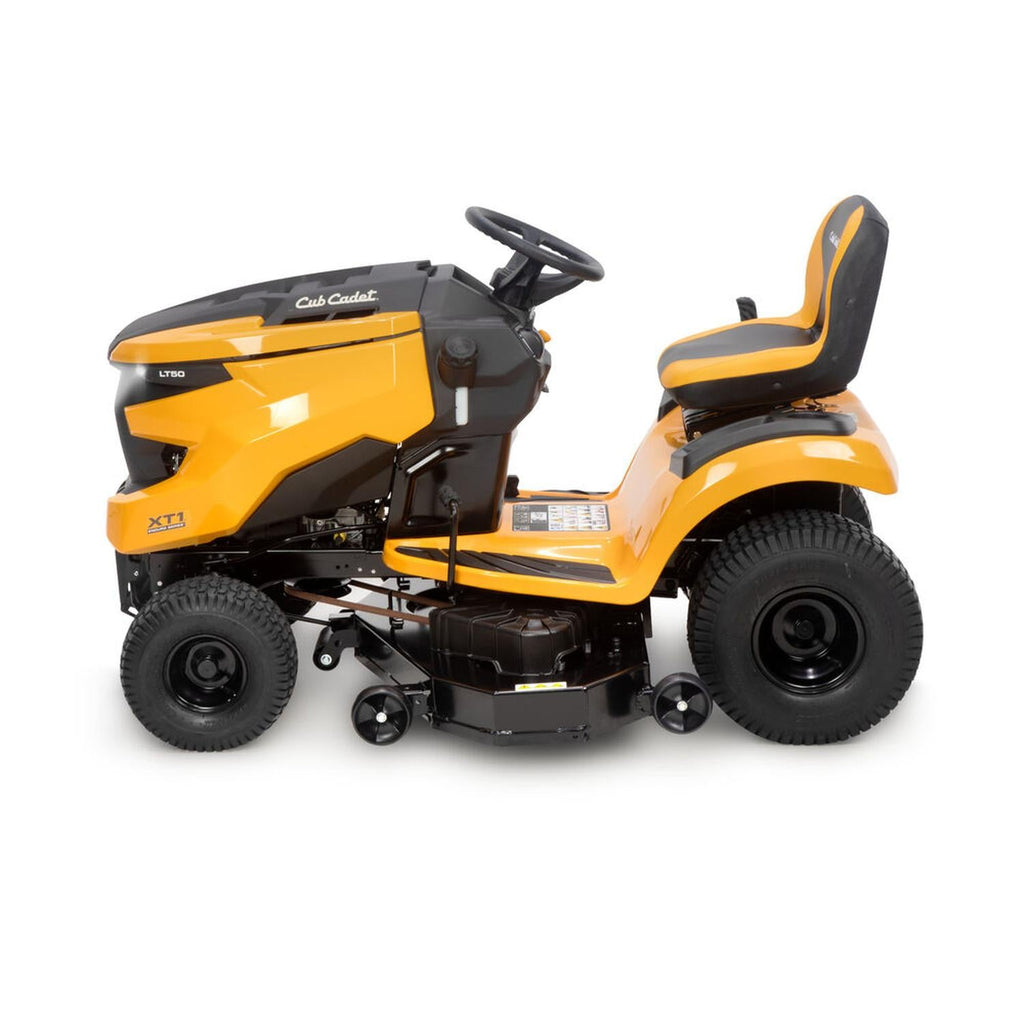

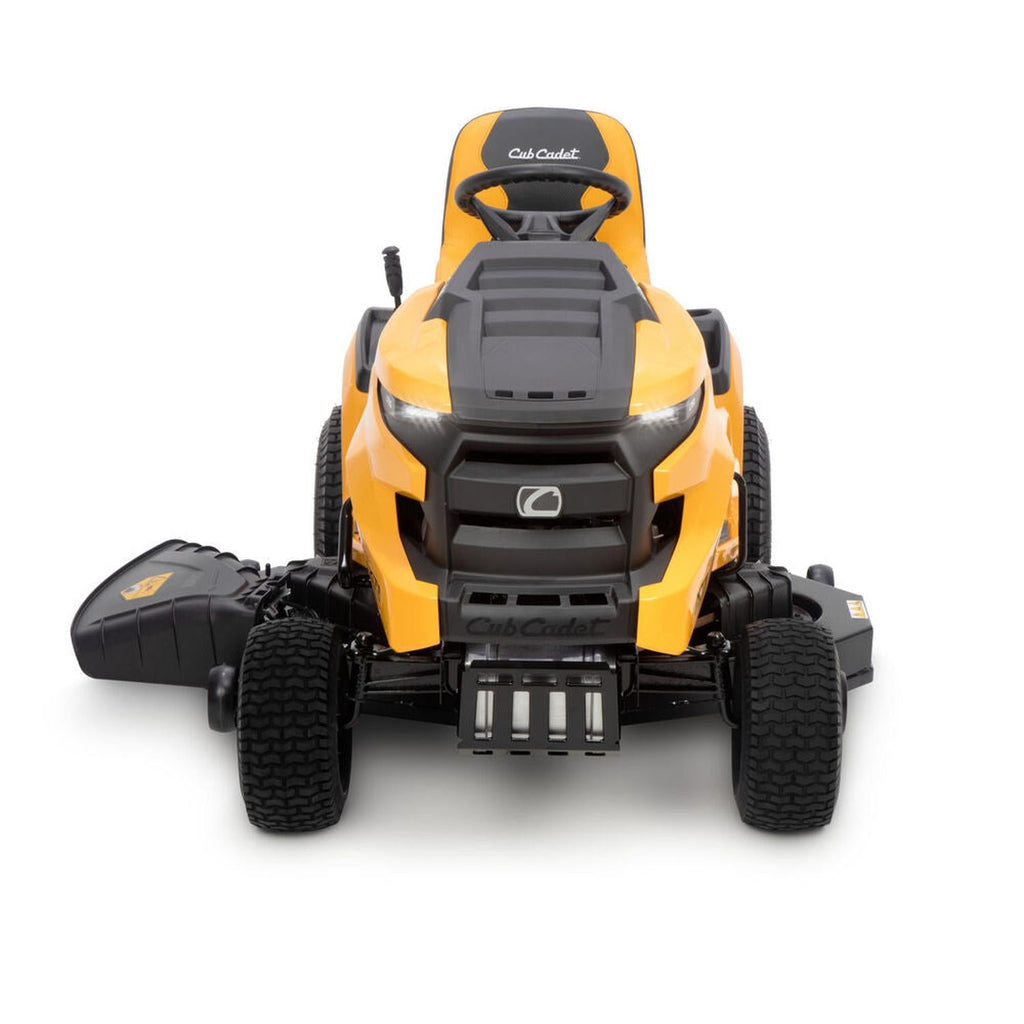

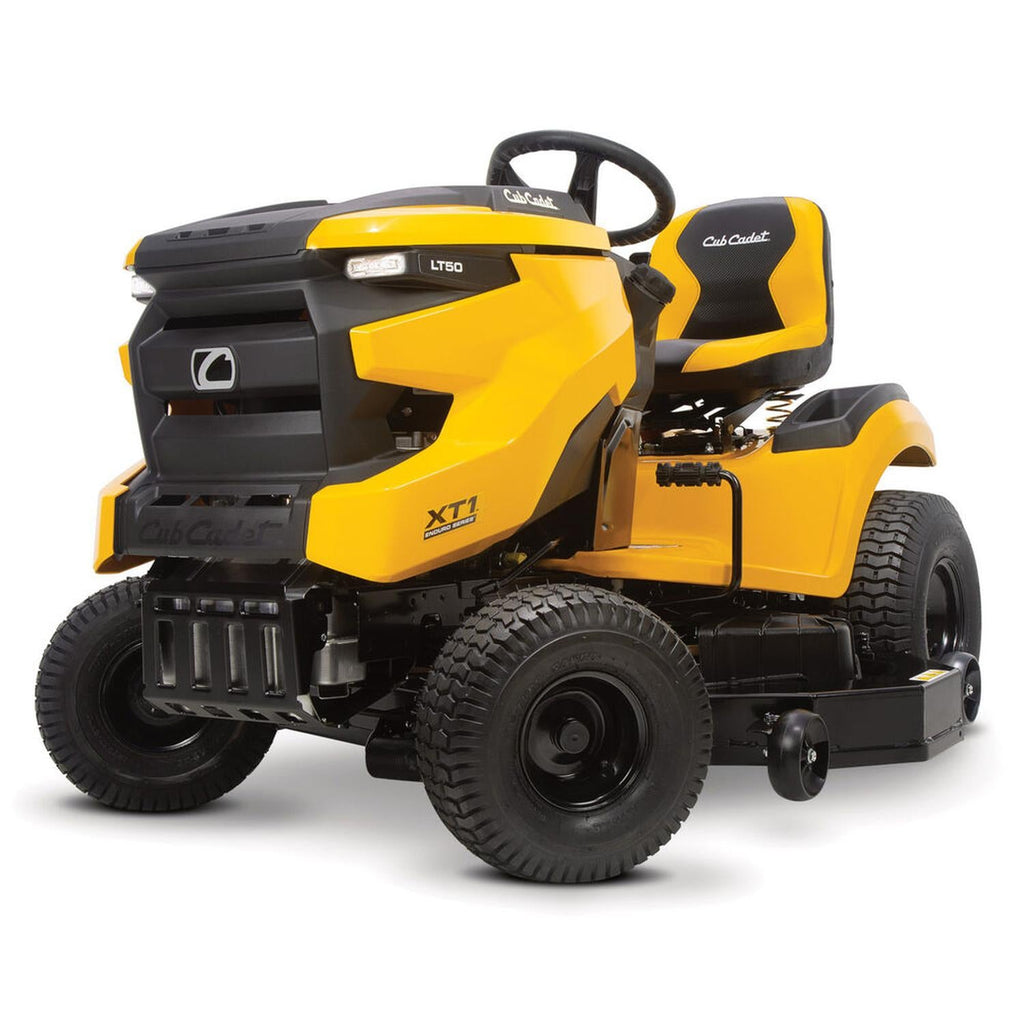

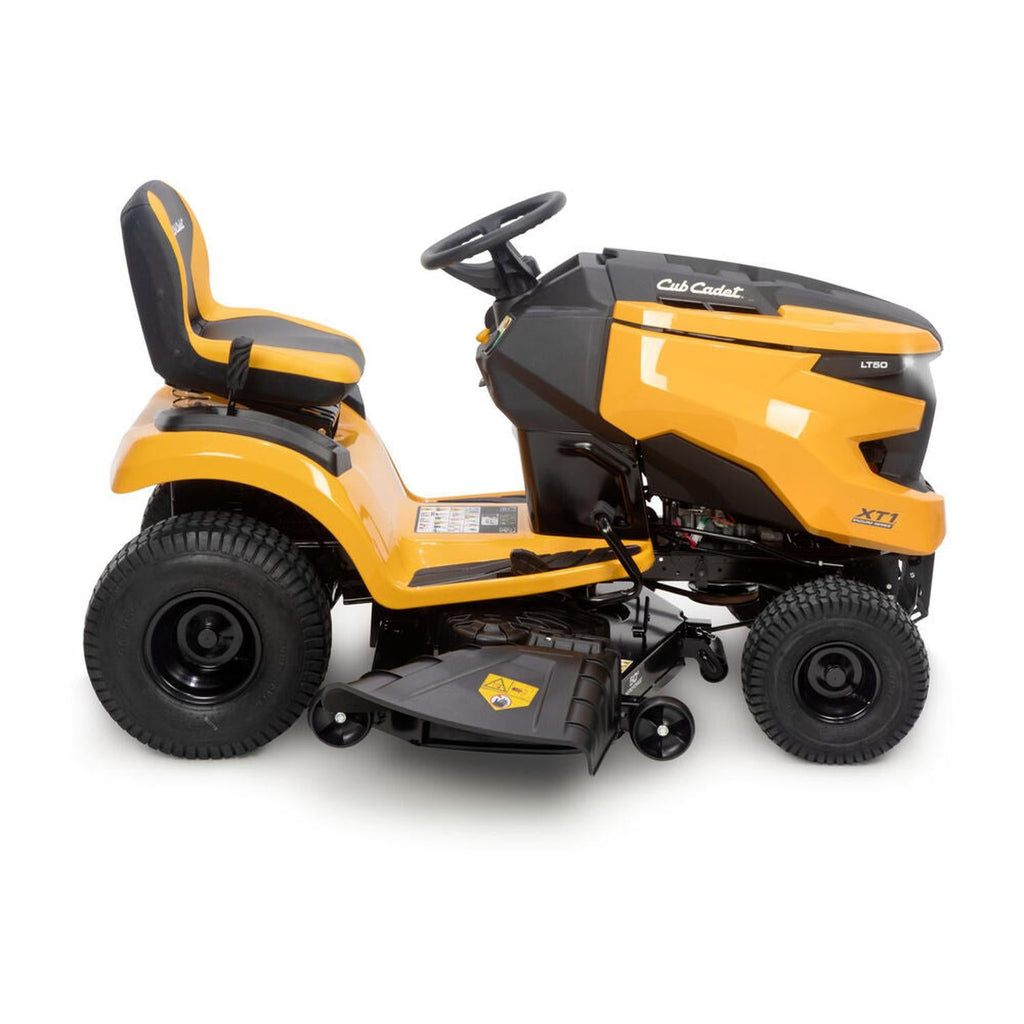

- The Cub Cadet XT1 LT50 FAB is powered by a 24 hp KOHLER 7000 Series twin cylinder engine.
- 50-inch fabricated, 11-gauge, triple-blade AeroForce(TM) deck design that optimizes airflow and maximizes suction to reduce clumping during discharge and improves bagging performance while delivering the pristine Cub Cadet Signature Cut(TM).
- Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
- 3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours/limited lifetime fabricated deck shell.
- Ideal for mowing up 2-4 acres of mostly flat terrain and a few obstacles.
-
Engine Brand: Kohler®
-
Engine Model: KT724
-
Engine Displacement: 747cc
-
Engine Output: 24 HP
-
Fuel Tank Capacity: 3 gal.
-
Cylinders/Material: Twin
-
Engine Start: Key
-
Engine Oil Capacity: 2 qt.
-
Lubrication: Fully pressurized
-
Battery: 12V 230 cold crank amps AGM
-
Charging System: 12 amp regulated
-
Fuel Gauge: Fuel sight window
-
Governor: Manual
-
Choke: Choke-a-matic
-
Air Filter: Dual element
-
Oil Filter: Yes
Drive System
-
Transmission: Hydrostatic, foot
-
Forward Speed: 5.5 MPH
-
Reverse Speed: 3 MPH
-
Rear Axle : 3/4" w/dual PM steel drive hubs
-
Transmission Housing: Cast aluminum
-
Transmission Type: Tuff Torq K46
-
Engine to Transmission: Heavy-duty belt
Cutting Deck
-
Deck Cutting Width: 50"
-
Cutting Modes: Discharge/mulch/bagging
-
Deck Wash: Yes
-
Deck Material: Steel, 11-gauge
-
Deck Attach/Removal: QuickAttach™ (no tools required)
-
Deck Engagement (PTO): Electronic fingertip engagement
-
Deck Construction: Fabricated
-
Spindle Construction: 3/4" with steel cap and Triple Lip Sealed
-
Blade(s): Triple Blades
-
Deck Lift: Lever
-
Cutting Height Range: 1" - 4"
-
Anti-Scalping: 2 Ball/2 Ball/Nose Roller
-
Deck Positions: 12-position
Chassis
-
Frame: Fully robotically-welded frame with new e-coating corrosion defense system
-
Front Axle(s): Cast iron
-
Turning Radius: 16"
-
Front Tires: 15" x 6" sleeve bearing
-
Rear Tires: 20" x 8"
-
Tire Tread: Turf Saver
-
Bumper: Optional
-
Rear Tow Hitch: Included
-
Corrosion Protection: Yes
Controls
-
Cruise Control: Included
-
Brakes: Disc
-
Steering Wheel Control: Manual sector and pinion
-
Headlight(s): 2 - LED
-
Display:
Comfort
-
Seat Type: 15" high-back seat
-
Seat Suspension: Seat spring
-
Seat Adjustment: Lever
-
Floor Mats: Rubber
Dimensions
-
Dimensions: L/W/H 68"/60"/42.5"
-
Weight (approx.): 500 lbs.
-
Wheelbase: 47"
Additional Specifications
-
Mulch Kit: Optional
-
Discharge Chute: Included
-
Cup Holder: Included
-
Operator Presence System: Included
-
Bagger: Optional
-
Model Number: 13AQA1TLA10
Warranty
-
Warranty: 3-year/unlimited hour warranty
-
Frame Warranty: 5-year/unlimited hour warranty
-
Front Axle Warranty: 5-year/unlimited hour warranty
-
Deck Shell Warranty: Limited lifetime warranty
