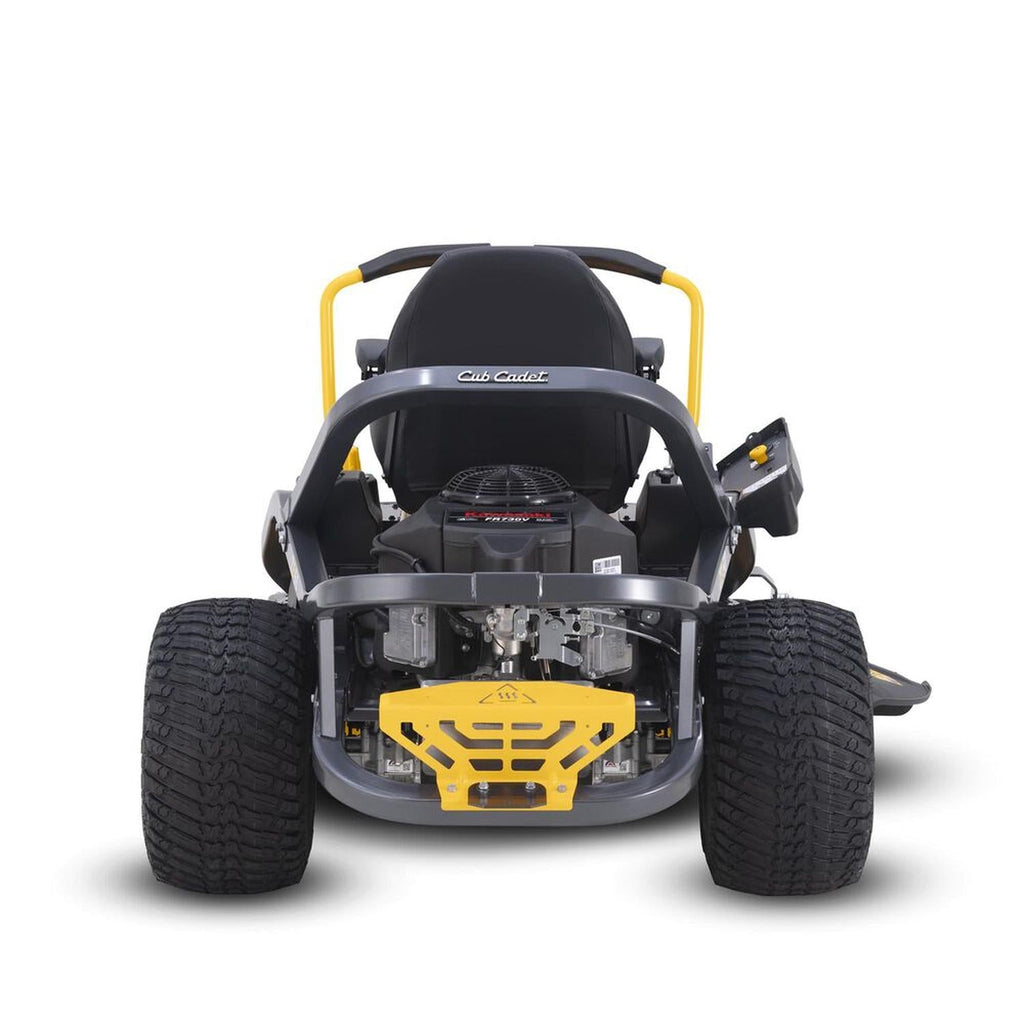

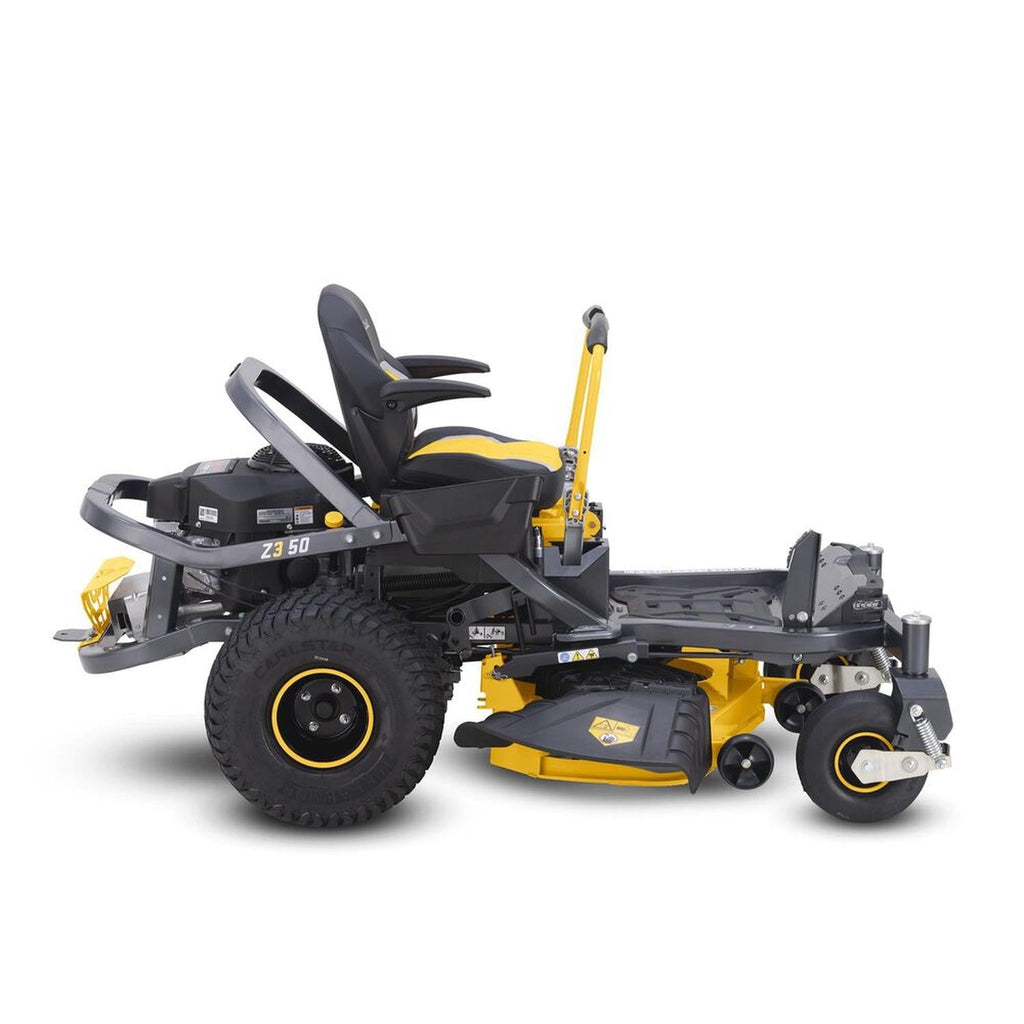

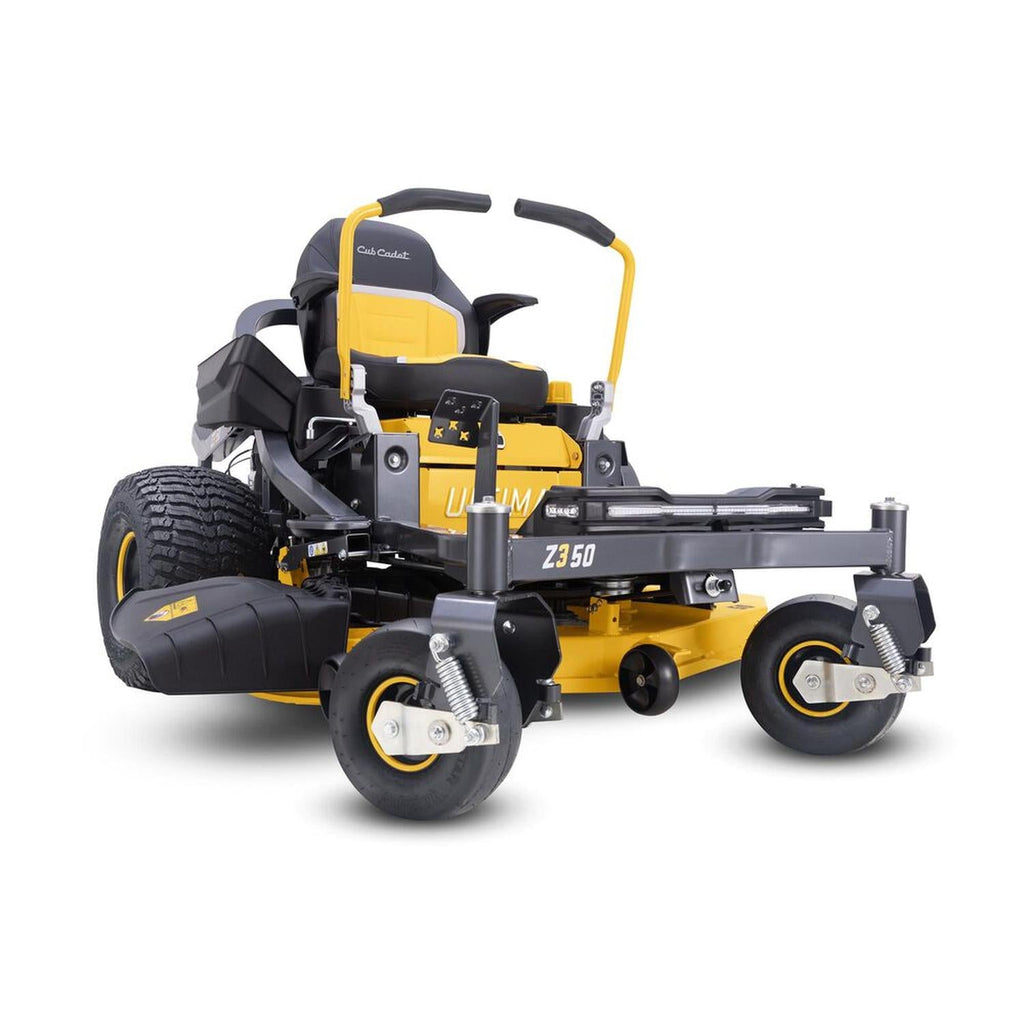

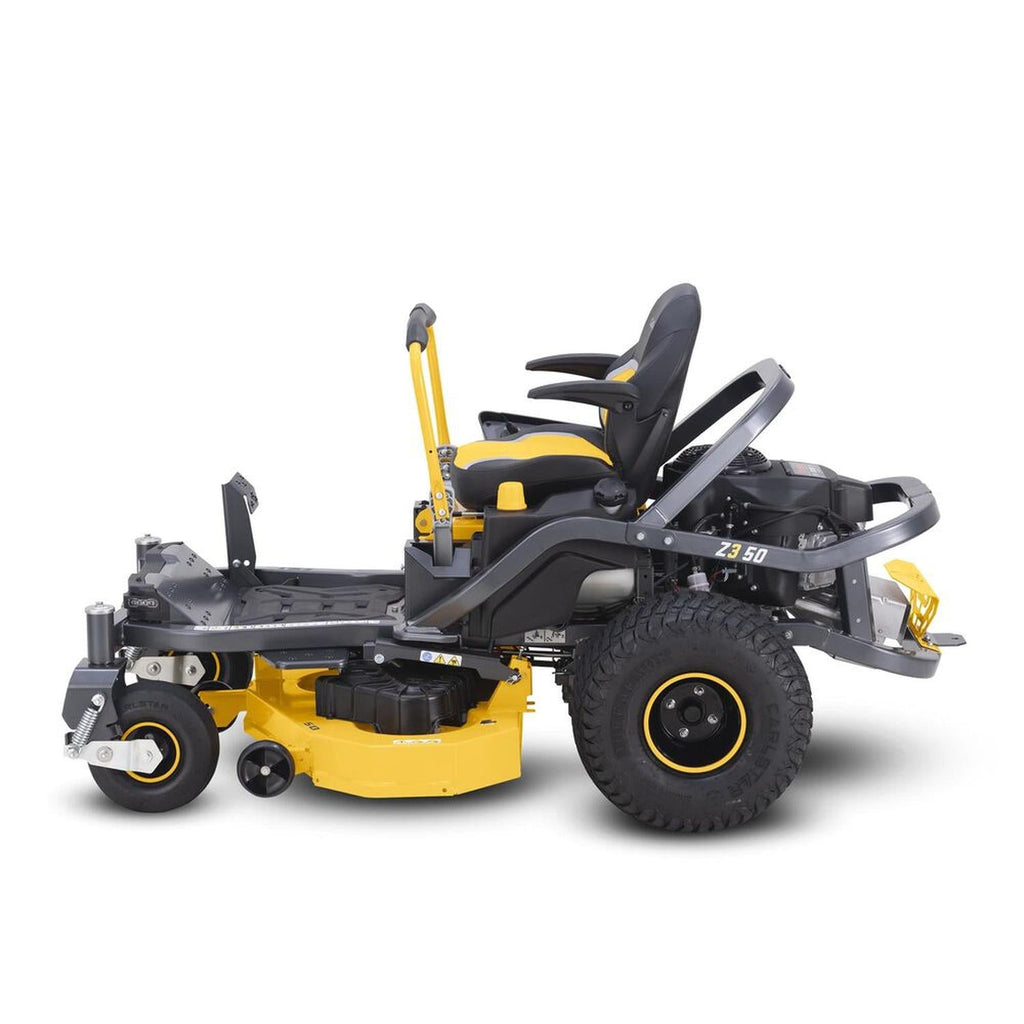

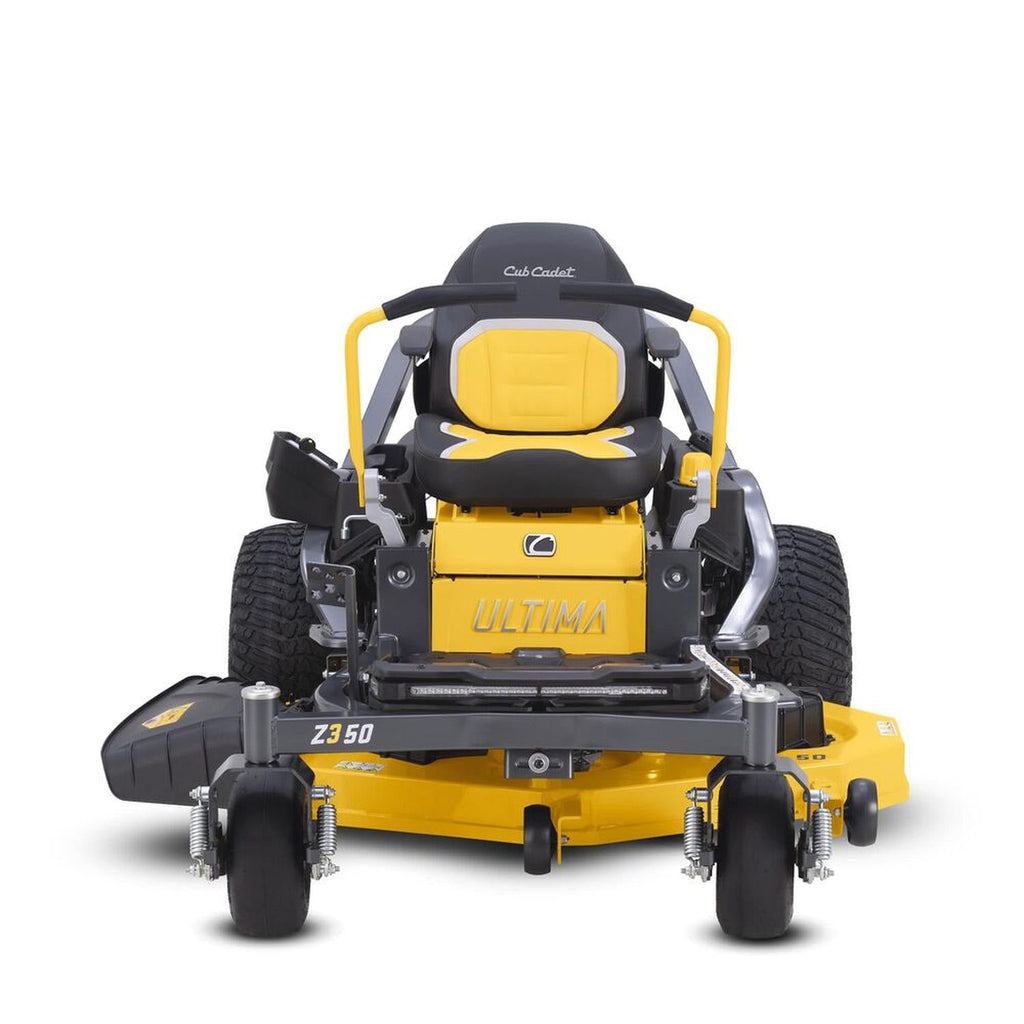

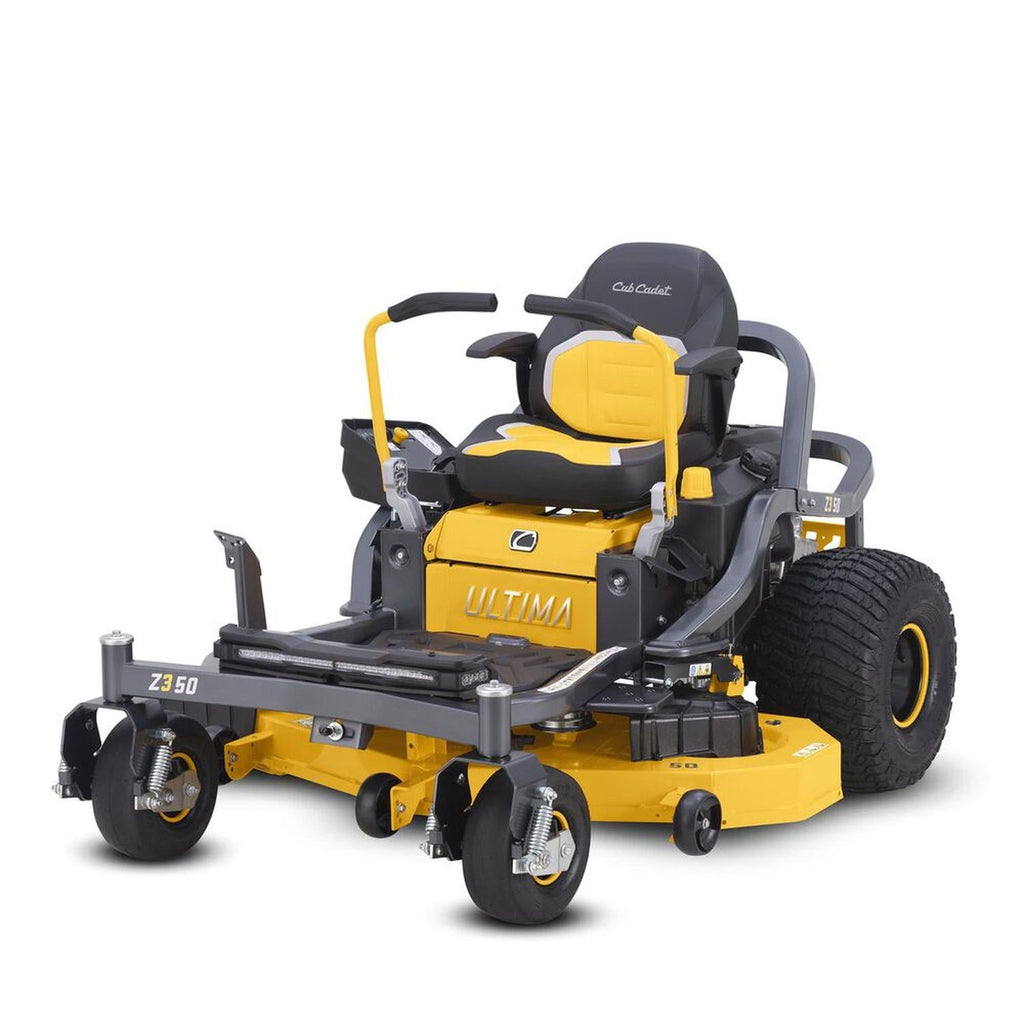

Z3 50
The Ultimate Mowing Experience is about to step up with enhanced comfort and performance designed to deliver the proven results you expect from the Ultima Series™. The Cub Cadet® Ultima Series Z3 50 50-in. 24 HP*/726cc Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck delivers uncompromised performance, durable strength, and proven results needed to tackle hills and slopes up to 15-degrees. Work in comfort with a high back seat and save time mowing with an Ultima Series™ zero-turn, 25% faster than a tractor**
- The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable 24 HP*/726cc Kawasaki® Engine built to meet fierce demands.
- A 11-gauge steel welded, heavy-duty fabricated AeroForce™ Max deck with side, top and leading-edge reinforcements equips you with the right amount of strength for consistent cut quality.
- Protect against wear and tear while being the envy of your neighborhood with a continuous, 2x2 tubular steel frame designed to withstand heavy loads and provide stability on rough, uneven terrain.
Engine
-
Engine Brand: Kawasaki®
-
Engine Model: FR Series
-
Engine Model Number: 691V
-
Engine Displacement: 726cc
-
Engine Output: 24HP
-
Starter Type: Electric
-
Fuel Tank Capacity: 3.5 gal. US (13.25 L)
-
Cylinders: Twin
-
Engine Start: Ignition Key
-
Engine Oil Capacity: 2.1qt. US (1.89 L)
-
Lubrication: Fully pressurized
-
Charging System: 12 amp regulated
-
Fuel Gauge: No
-
Governor: Mechanical
-
Choke: Separate Choke
-
Air Filter: Dual element
-
Oil Filter: Yes
-
Fuel Delivery: Carburetor
Battery
-
Battery: 230 CCA
-
Battery Type: Lead Acid
-
Battery Voltage: 12V
Drive System
-
Transmission: Tuff Torq TZ 350
-
Forward Speed: 7 MPH / 11.3 km/h
-
Reverse Speed: 3.5 MPH / 5.6 km/h
-
Drive System: Hydrostatic
Cutting Deck
-
Deck Cutting: Width 50 in
-
Deck Wash: No
-
Deck Material: 11-gauge steel
-
Deck Engagement: (PTO) Electric
-
Deck Construction: Fabricated
-
Blade(s): 3
-
Deck Lift: Foot pedal with Dial Adjust
-
Cutting Height Range: 1'' - 4.5''
-
Anti-Scalping: 2 gauge wheels
-
Deck Positions: 15
Warranty
-
Residential Warranty: 3-year unlimited hours
-
Frame Warranty: Lifetime Limited
-
Deck Shell Warranty: Lifetime limited
-
Commercial Warranty: No
Chassis
-
Frame: 2'' x 2'' tubular steel
-
Turning Radius: 0°
-
ROPS: No
-
Rear Tow Hitch: Yes
-
Corrosion Protection: Yes
Controls
-
Cruise Control: No
-
Brakes: Disc
-
Steering Control: Steering Wheel
Comfort
-
Seat Type: 20" Cut-and-Sew with Head Bolster
-
Armrests: No
-
Seat Adjustment: Knob
-
Front Caster Suspension: No
Wheels
-
Rear Tires: 20”x 12”-8"
-
Front Tires: 11"x 6.0"-6"
-
Tire Tread: Turf Armor
Additional Specifications
-
Hour Meter: Yes
-
Mulch Kit: Available separately
-
Headlight(s): LED
-
Cup Holder: Yes
-
Operator Presence System: Yes
-
Parking Brake: Hand lever
-
Model Number: 17RIECE2010
-
AIR FILTER: KM-11013-0752 OR 490-200-F022
-
OIL FILTER: KM-49065-0736
- ENGINE OIL:
-
FUEL FILTER: KM-49019-0031
-
SPARK PLUG: KM-BPR4ES
-
DECK BELT: 954-05078
-
DRIVE BELT: 954-04317A OR 490-501-C069
-
BLADES : 742P05094
-
XTREME BLADES: 742P05094-X
-
IGNITION KEY: 925-1745A
- HOUR METER KIT:
